A flange butterfly valve uses a turning disc to control fluid in a pipe. This valve is used in many factories because it can stop flow fast and works well. TANGGONG VALVE is a leading maker in China and has important certificates like ISO9001:2015, CE, TUV, SGS, API 6D, and API 607.
Knowing how a butterfly valve works helps you pick the best one for your job. You also learn how to make things safer and work better.

Key Takeaways

• Flange butterfly valves use a spinning disc to control fluid flow. This makes them work well in many industries. These valves are light and do not take up much space. They are good for big pipes and high-pressure systems. This helps lower the cost to install them. You need to check and oil these valves often. This keeps them working well for a long time. Picking the right valve means you must think about the fluid, temperature, and pressure. You also need to look at actuator choices for your needs. TANGGONG VALVE sells certified butterfly valves that are high quality. These valves follow world standards for safety and performance.

Flange Butterfly Valve Basics

What Is a Flange Butterfly Valve

Factories and plants use flange butterfly valves a lot. This valve has a round disc inside the pipe. The disc turns to control liquids or gases. The disc connects to a shaft. You move it with a handle, gear, or actuator. Turning the disc opens or closes the pipe. The "flange" means the valve has flanged ends. These ends bolt between two pipe flanges. This makes the valve strong and secure.

A butterfly valve is simple and light. It works well in big pipes without adding much weight. The design saves space. It is easy to install or remove. Many industries use this valve for water, chemicals, steam, and fire-safe systems. The body is often made of ductile iron. It has a special coating to stop rust and damage.

Flange butterfly valves come in many sizes. They work in low and high-pressure systems. The double eccentric design puts the disc a bit off-center. This helps the valve seal better and last longer. It reduces wear and makes the valve more reliable.

How a Flange Butterfly Valve Works

A butterfly valve works by turning the disc inside the pipe. You open the valve by turning the disc to match the flow. Closing the valve turns the disc to block the flow. This movement gives quick control over the fluid.

Here is how the mechanical principle works:

• The butterfly valve works by turning a disc to control fluid.

• When closed, the disc blocks the flow. When open, the disc is parallel to the flow.

• You can use a handwheel, gear, or actuator to operate the valve.

This valve shuts off fast and controls flow easily. The design lets you move lots of fluid with little effort. Butterfly valves do not give fine control like throttle valves. They work well for big flows and cost less. Throttle valves are better for exact flow control. For most big jobs, butterfly valves give good control and save money.

A flange butterfly valve keeps your system safe. Here are some safety features in the table below:

You can trust a flange butterfly valve to stop leaks. It keeps your system running well. The strong seal and simple design make it safe for many jobs.

You also save money with this valve. The simple build means fewer parts and lower costs. In big projects, you can cut your budget by 20-40% compared to gate valves. The light design lowers shipping and handling costs. For big jobs, butterfly valves are often the best choice.

New technology makes these valves even better. Improved materials last longer and fight rust. Advanced seals stop leaks and make the valve more reliable. Some valves have smart actuators. These let you check and control the valve from far away.

International standards help you pick the right valve. These standards make sure your valve fits and works with other parts. Here are some important standards:

Choosing a flange butterfly valve gives you a simple, strong, and safe product. You get a valve that meets global standards and uses new technology. This makes it a smart choice for many industries.

Key Components and Structure

Main Parts of a Butterfly Valve

To understand how a butterfly valve works, you need to know its main parts. Each part does something important and is made from strong materials. The body sits between two pipe flanges and holds the valve together. The disk can stop or let fluid move through the pipe. The stem links the disk to the actuator so you can turn the valve. The seat helps the valve close tightly and stop leaks.

Here is a table that lists the main parts and what they are made of:

The disk and seat work together to make a tight seal. This stops leaks and helps the butterfly valve work well. The stem and actuator let you control the valve exactly how you want. Some valves use C95500 alloy to make them stronger and stop rust. How the valve is made also matters. Good manufacturing helps the valve last longer and work better.

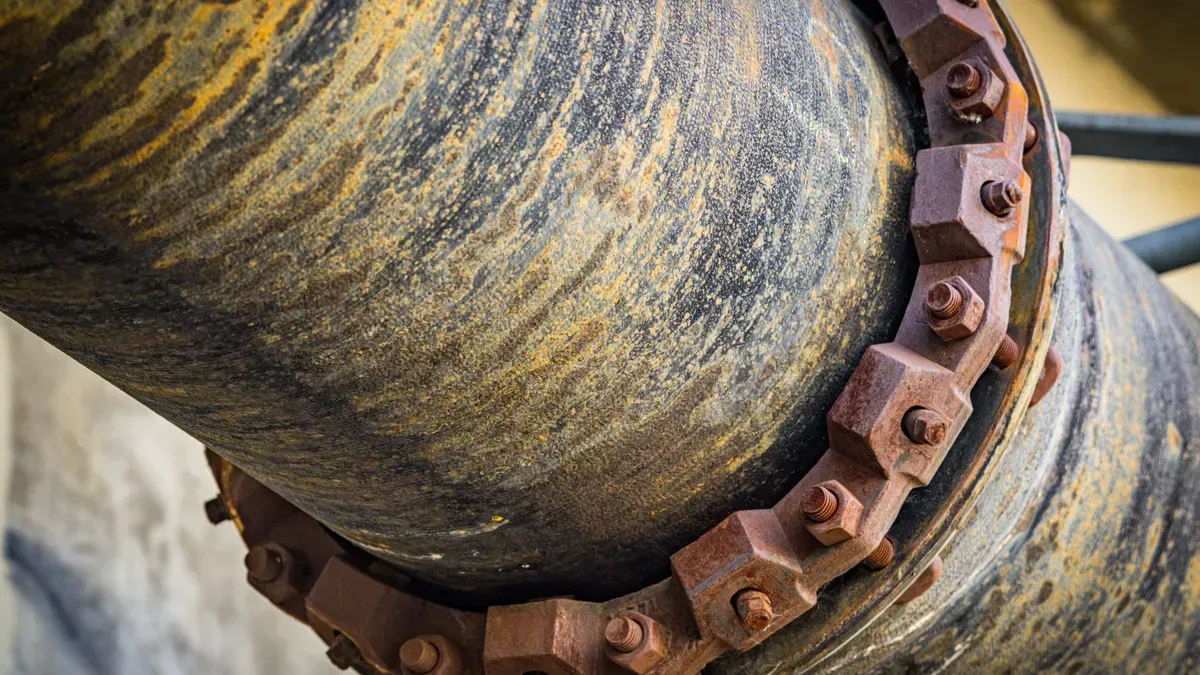

Flanged Connection Design

The flanged connection is a key part of the butterfly valve. It makes the valve strong and keeps it steady. Integral flanges match up with pipe flanges and make the valve even stronger. You see this design a lot in big pipes and high-pressure jobs. The double-flanged design keeps the valve stiff and does not rely on pipe flange pressure. This is very important for systems that must not fail.

Here is a table that shows what is special about flanged connection design:

When you put in a butterfly valve with flanged ends, you get a strong and safe connection. This works well for high-pressure pipes. You must line up the valve right and tighten the bolts evenly. Taking care of this valve takes more steps, like using gaskets and checking bolt tightness. This design is not as easy for quick repairs, but it gives you a tough and dependable valve.

Tip: Always make sure the valve is lined up and the bolts are tight when you put in a butterfly valve with flanged ends. This helps stop leaks and keeps your system safe.

TANGGONG VALVE Butterfly Valve Features

Product Advantages and Certifications

You want a butterfly valve that works well and lasts long. TANGGONG VALVE makes strong valves you can trust. They use stainless steel, ductile iron, and alloy steel. These materials help stop rust and damage. You can use the valve in hot, cold, or high-pressure places. The valve is light and small, so it saves space and money when you install it.

TANGGONG VALVE uses new technology to make each valve. Some valves have double or triple offset designs. These designs help the valve seal tight and stop leaks. You can pick from many seat materials like PTFE, RTFE, or metal. This lets you match the valve to your needs. The company tests every valve to meet strict rules.

You can see the certifications for TANGGONG VALVE butterfly valves in the table below:

These certifications show you get a safe and trusted valve for your job.

Typical Applications

You can use a butterfly valve from TANGGONG VALVE in many places. Water plants use these valves to control flow in big pipes. Chemical factories use them for strong liquids and gases. Power stations need valves for high heat and pressure. Marine companies use butterfly valves for seawater and fuel. You also find these valves in fire-safe systems and HVAC units.

Here are some common uses for a butterfly valve:

• Water distribution and treatment plants

• Chemical processing and storage

• Oil and gas pipelines

• Power generation stations

• Marine and shipbuilding

• Fire protection systems

• HVAC (heating, ventilation, and air conditioning)

You get a valve that fits many jobs. TANGGONG VALVE gives you many choices for size, pressure, and how to use it. You can pick manual, electric, pneumatic, or hydraulic controls. This makes the butterfly valve a smart pick for many projects. You can trust TANGGONG VALVE to give you a product that works well and keeps your system safe.

Installation, Maintenance, and Selection

Installation Steps

You need to install a butterfly valve the right way to keep your system safe and working well. Follow these steps for a proper flange butterfly valve installation:

1. Pre-position the disc. Keep it slightly open so it does not get damaged.

2. Spread the flanges apart to make space for the valve.

3. Center the valve between the flanges and install the first bolts.

4. Remove the spreader and hand-tighten the bolts.

5. Check for proper clearance around the disc.

6. Tighten all bolts to the correct torque.

7. Do a final operational check to make sure the valve opens and closes smoothly.

Tip: Always follow the torque specifications from TANGGONG VALVE to avoid leaks or damage.

Common mistakes can cause problems. Avoid these errors:

• Misalignment can bend or crack the valve.

• Over-tightening or under-tightening bolts can cause leaks.

• Incorrect actuator mounting can stop the valve from working.

• Using the wrong gasket or not cleaning the area can lead to leaks.

• Skipping tests after installation can hide issues.

Maintenance Tips

Regular care helps your butterfly valve last longer. You should:

• Inspect the valve body, disc, and stem for wear or damage.

• Fix any chips, cracks, or corrosion right away.

• Lubricate moving parts to keep the valve working smoothly.

• Clean and flush the valve to prevent blockages.

Check for blockages or wear from dirt or chemicals. Use the right lubricant for your valve. Pick corrosion-resistant materials if you work with harsh fluids. Always keep the area clean during installation and maintenance.

How to Choose the Right Flange Butterfly Valve

Choosing the right valve helps you regulate or isolate fluids safely. Think about these points:

1. Fluid type: Know if you need to control water, gas, or chemicals.

2. Temperature and pressure: Make sure the valve can handle your system’s needs.

3. Connection type: Pick wafer, lug, or double flange based on your setup.

4. Actuator choice: Decide if you want manual, electric, pneumatic, or hydraulic control.

5. Maintenance: Think about how often you will check or fix the valve.

6. Standards: Make sure the valve meets industry certifications.

Other factors matter too. The pressure rating affects the valve’s strength. The size must match your flow needs. The material should fit your fluid and environment. TANGGONG VALVE offers many options for each of these needs, so you can find the best quarter-turn valve for your project.

Note: Always match the valve material and design to your application for the best performance and safety.

You now know how a flange butterfly valve works. This valve is important for your system. Picking a good valve means it will last longer. It also helps your system work better and saves money. You will have fewer leaks and help the environment. TANGGONG VALVE makes valves you can trust for many jobs. If you want to learn more, check the technical documents or join monthly webinars. These can help you understand even more.

FAQ

What is the main purpose of a flange butterfly valve?

A flange butterfly valve helps control or stop fluid in pipes. It works quickly and fits many factory systems. This valve saves space. It helps you handle water, gas, or chemicals safely.

How do you operate a flange butterfly valve?

You turn a handle, gear, or actuator to move the disc. The disc opens or closes the pipe. You can pick manual, electric, pneumatic, or hydraulic ways to use it.

What materials can you choose for a butterfly valve?

You can pick stainless steel, ductile iron, or alloy steel. Some valves have special coatings. The seat can be PTFE, RTFE, rubber, or metal. Your choice depends on the fluid, heat, and pressure.

Where can you use TANGGONG VALVE butterfly valves?

You can use these valves in water plants and chemical factories. They also work in oil and gas pipes, power stations, and marine systems. Fire protection systems use them too. These valves work well for many jobs.
